Sudan Project
MHQ 10ton single girder gantry crane

Lifting capacity:10ton
Lifting height: 9m
Lifting speed: 7/0.7m/min
Trolley traveling speed: 0-20m/min (with inverter)
Carriage traveling speed: 0-30m/min (with inverter)
Control mode: control with wire and remote control
Yuetong wire rope electric hoist
Good quality with lower costs

KAZAKHSTAN Project

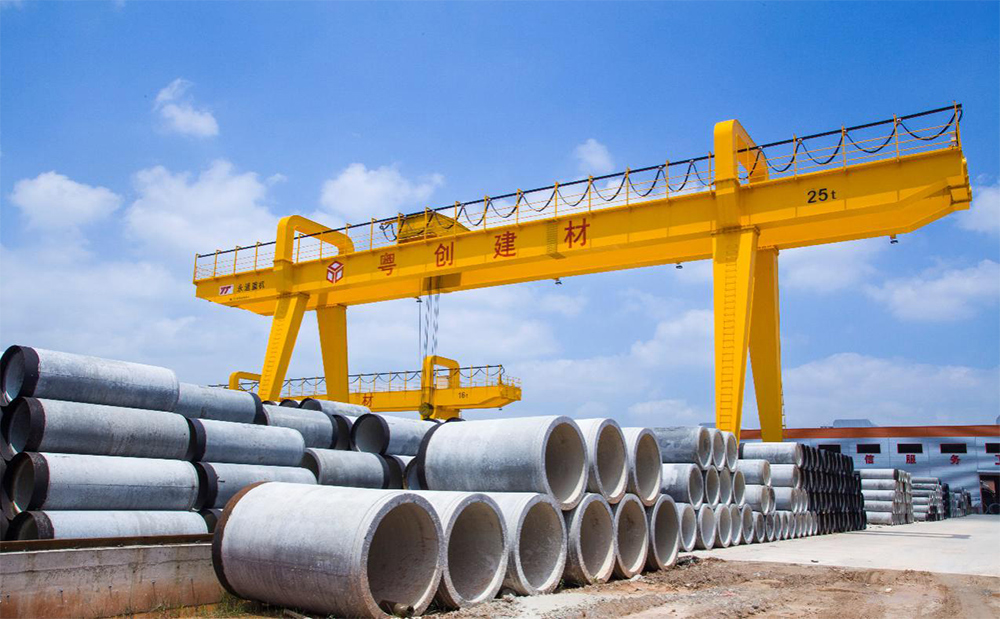

25ton Double Girder Gantry Crane

Lifting capacity: 25ton
Span: 32m
Lifting speed: 0.3/3m/min
Trolley traveling speed: 0-20m/min
Carriage traveling speed: 0-30m/min
Power supply:380v, 3P, 50hZ
Control mode: control with wire and remote control
Boneng gearbox and motors
Used in a construction material factory

QATAR Project

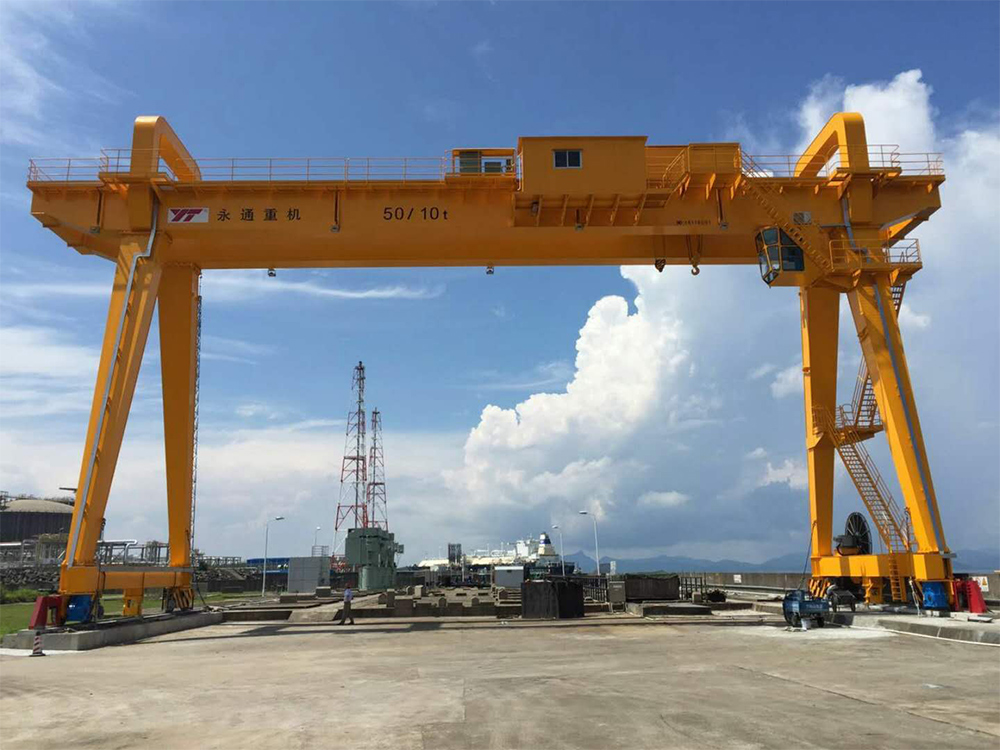

DG03 50/10ton double girder gantry crane

Lifting capacity: 50ton
Span: 35m
Lifting speed: 5m/min
Trolley traveling speed: 0-25m/min (with inverter)
Carriage traveling speed: 0-50m/min (with inverter)
Power supply:380v,3P,50hZ
Control mode: control with wire and remote control
DEMAG winch system
SEW motors
Used in a transformer factory

Bangladesh Project

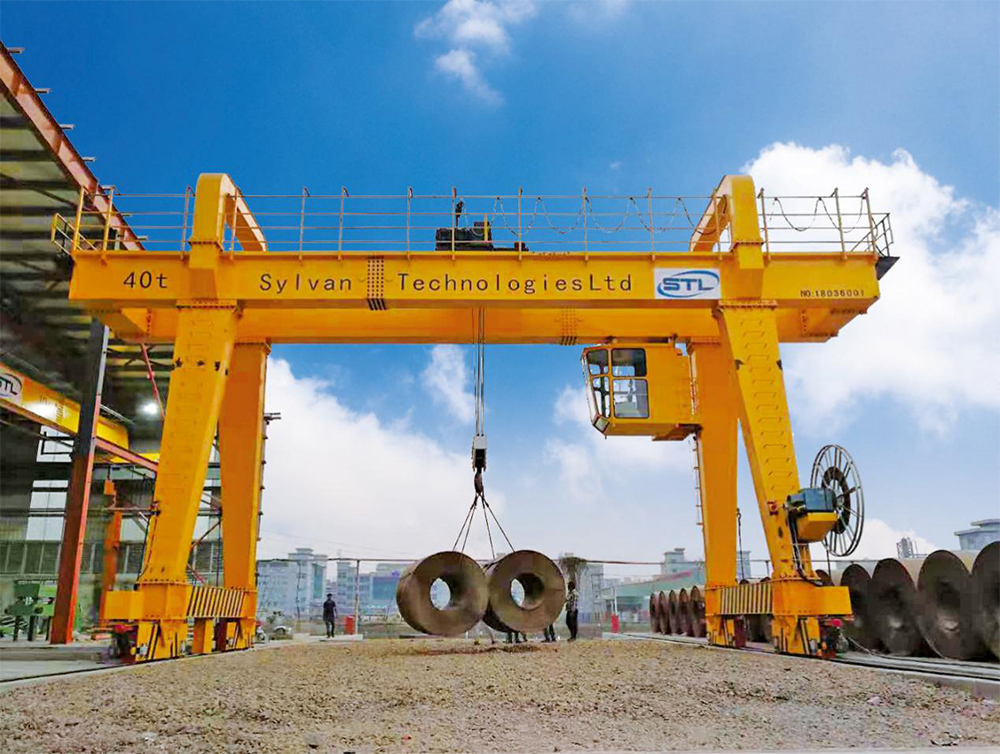

MHQ 40ton double girder gantry crane

Lifting capacity: 40ton
Span: 16M
Lifting speed: 0.7/4.1m/min
Trolley traveling speed: 0-20m/min (with inverter)
Carriage traveling speed: 0-32m/min (with inverter)
Power supply:380v,3P,50hZ
Control mode: control with wire and remote control
Borren European style wire rope hoist
Crane features: European style design

Malaysia Project
25ton Semi-gantry Crane

Lifting capacity: 25ton
Span: 18M
25ton hoist speed: 0.3/3m/min
10ton hoist speed: 0.7/7m/min
Trolley traveling speed: 0-20m/min (with inverter)
Carriage traveling speed: 0-32m/min (with inverter)
Power supply:380v,3P,50hZ
Control mode: control with wire and remote control
Used in a steel factory

South Africa Project

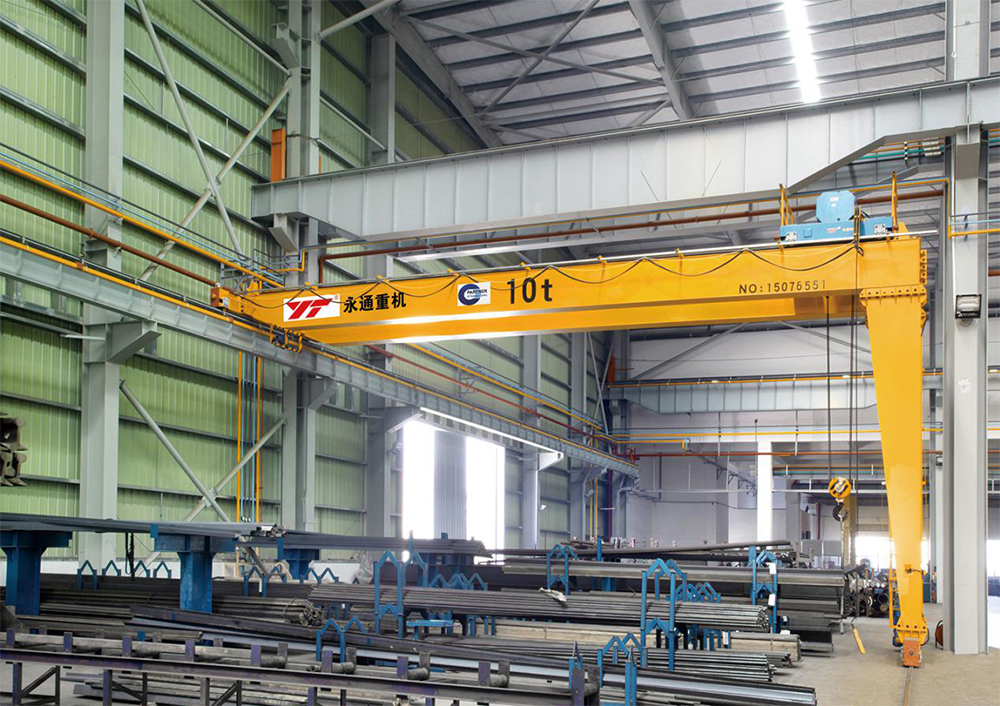

SG-06 10ton semi-gantry crane

Lifting capacity: 10ton
Span: 12M
Lifting speed: 0.7/7m/min
Trolley traveling speed: 0-20m/min (with inverter)
Carriage traveling speed: 0-32m/min (with inverter)
Power supply:380v,3P,50hZ
Control mode: control with wire and remote control
Yuetong wire rope electric hoist
Good quality with lower costs
Used in a steel factory

Uganda Project
SG-07 3ton semi-gantry crane

Lifting capacity: 3ton
Span: 17M
Lifting speed: 0.8/8m/min
Trolley traveling speed: 0-20m/min (with inverter)
Carriage traveling speed: 0-32m/min (with inverter)
Power supply: 380v,3P,50hZ
Control mode: control with wire and remote control
Yuetong wire rope electric hoist
Good quality with lower costs
Used in a steel structure factory

First established in 1996, YT Crane Machinery Co., is a professional crane manufacturer with more than 20 years of experience in the production of different crane types, including overhead cranes, gantry cranes, jib cranes, and portal cranes. The maximum lifting capacity of our double girder overhead cranes is more than 200 tons.
