Accessories

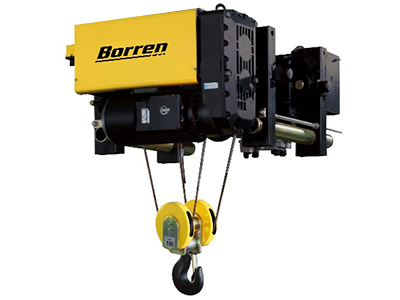

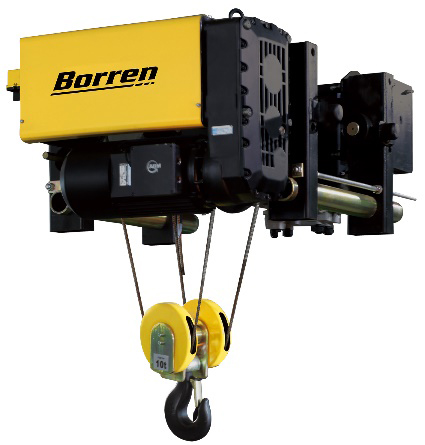

Single-Girder Wire Rope Hoist

	Unit of measurement	3.2t-M5(2m)					5t-M5-M5(2m)					10t-M5-M5(2m)
Lifting height	m	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18
Lifting speed	m/min	0.8/5					0.9/5.5					0.8/5
Moving speed	m/min	Variable frequency: 0-20
Lifting motor power	kw	0.45/3.2					0.9/6					1.5/9.5
Moving motor power	kw	0.37（50Hz）/0.64（87Hz）					0.37（50Hz）/0.64（87Hz）					0.55（50Hz）/0.96（87Hz）
Weight	kg	290	296	317	338	358	380	388	417	446	475	690	708	755	802	849
Beam Flange Range L	mm	Lmax=500					Lmax=600					Lmax=600
On-track size H	mm	240					254					328
Maximum hook size C	mm	Cmin=550（While L≤250mm)					Cmin=600（While L≤250mm)					Cmin=780（While L≤300mm）
Total length D	mm	1064					1064					1204
Total height(not including hook) F	mm	430					534					641

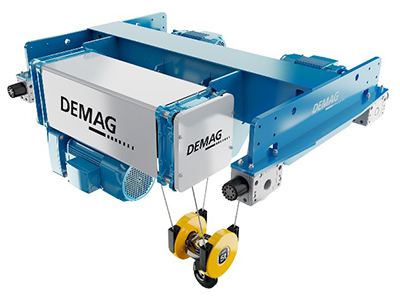

5ton DEMAG Wire Rope Hoist

Lifting capacity: 5ton
Lifting height: 6-12m
Trolley traveling speed: 0-20m/min
Power supply: 380V, 3P, 50hz

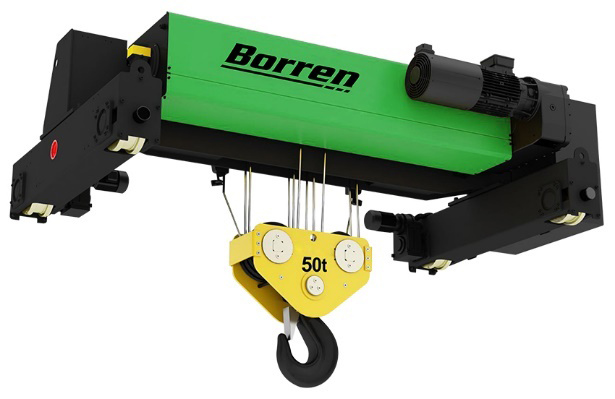

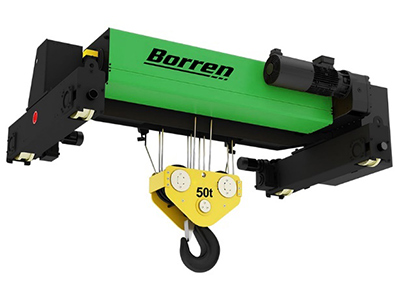

Double-Girder Wire Rope Hoist

3.2-10t Double-girder wire rope hoist

		Single hook	3.2t-M5（2m）-4/1 wire rope					5t-M5（2m）-4/1 wire rope					10t-M5（2m）-4/1 wire rope					10t-M5（2m）-4/2 wire rope
		Twin hook	----					----					10/3.2t					10/3.2t
Lifting height H		m	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18
Lifting speed(Lifting motor power) Dual speed or variable frequency are optional		m/min	0.7/4 （2.5kw）					0.9/5.7 （4.9kw）					0.6/4 （7.6kw）					----
			0.8/5 （3.2kw）					1.1/7.1 （6kw）					0.8/5 （9.5kw）					1.2/7 （12.5kw）
			1/6.3 （4kw）					1.4/8.9 （7.6kw）					1/6.3 （12.5kw）					1.4/8.9 （16kw）
Moving speed/Moving motor power		kw	0-20m/min 1x0.3kw					0-20m/min 1x0.45kw					0-20m/min 2x0.45kw					0-20m/min 2x0.45kw
Maximum wheel pressure/Applicable track		KN/mm	～13KN / 30x40mm					～19KN / 30x40mm					～34KN / 30x50mm					～34KN / 30x50mm
Standard track gauge L		mm	1400		1800		2000	1400		1800		2000	1500		2000		2200	1500			2000
Allowed minimize track gauge Amin		mm	900	1000	1600	1800	2000	900	1000	1600	1800	2000	1100	1300	1600	2000	2200	1100	1300	1500	1700	1900
Wheel tread A (single hook/twin hook)		mm	800					1000					1200/1700					1200/1700
Horizontal center distance between two hooks S		mm	----					----					536					531
On-track size H (single hook/twin hook)		mm	452					502					588/638					621（664）/671（714）
Maximum hook size C		mm	300					300					360					360
Weight in standard track gauge	Single hook	kg	748	755	783	810	828	822	830	860	890	910	1133	1150	1192	1216	1280	1250	1265	1310	1340	1410
	Twin hook		----					----					1430	1450	1520	1570	1650	1550	1565	1640	1695	1780

12.5-50t Double-girder wire rope hoist

		Single hook	12.5t-M5（2m）-4/1 wire rope					12.5t-M5（2m）-4/2 wire rope					16t-M5（2m）-4/1 wire rope					20t-M5（2m）-4/1 wire rope					25t-M5（2m）-6/1 wire rope
		Twin hook	12.5/3.2t					12.5/3.2t					16/3.2t					20/5t					25/5t
Lifting height H		m	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18
Lifting speed(Lifting motor power) Dual speed or variable frequency are optional		m/min	0.7/4 （12.5kw）					----					0.7/4 （12.5kw）					----					0.47/2.7 （12.5kw）
			0.8/5 （16kw）					1.8/7.1 （20kw）					0.7/4 （16kw）					0.5/3.4 （16kw）					0.47/2.7 （16kw）
			----					----					1.2/4.9 （20kw）					1/4 （20kw）					0.8/3.3 （20kw）
Moving speed/Moving motor power		kw	0-20m/min 2x0.65kw					0-20m/min 2x0.65kw					0-20m/min 2x0.65kw					0-20m/min 2x0.65kw					0-20m/min 2x1.1kw
Maximum wheel pressure/Applicable track		KN/mm	～44KN / 30x50mm					～44KN / 30x50mm					～55KN / 30x50mm					～68KN / 30x50mm					～80KN / 40x50mm
Standard track gauge L		mm	1500			2100		1500			2100		1500		2100		2400	1500		2100		2400	1500	2400	2700	3400	4000
Allowed minimize track gauge Amin		mm	1000	1200	1500	2000	2100	1100	1300	1500	1700	1900	1200	1500	1900	2100	2400	1100	1400	1800	2100	2400	1400	2100	2700	3200	3800
Wheel tread A (single hook/twin hook)		mm	1400/1800					1400/1800					1400/1800					1400/1800					1600/2200
Horizontal center distance between two hooks S		mm	598					600					598					600					698
On-track size H (single hook/twin hook)		mm	746(703)/796(753)					721/771					746(703)/796(753)					721/771					881(926)			981(1026)
Maximum hook size C		mm	560					560					560					560					980
Weight in standard track gauge	Single hook	kg	1580	1640	1780	1865	1970	1710	1770	1910	1995	2100	1610	1675	1820	1910	2020	1625	1695	1845	1940	2055	2320	2465	2585	2780	2880
	Twin hook		1880	1935	2090	2175	2310	2010	2060	2220	2305	2440	1910	1970	2130	2220	2360	2005	2083	2262	2386	2530	2700	2860	3015	3240	3380

		Single hook	25t-M5（2m）-8/2 wire rope					32t-M5（2m）-6/1 wire rope					32t-M5（2m）-8/2 wire rope					40t-M5（2m）-12/2 wire rope					50t-M5（2m）-12/2 wire rope
		Twin hook	25/5t					32/5t					32/5t					40/10t					50/10t
Lifting height H		m	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18	6	9	12	15	18
Lifting speed(Lifting motor power) Dual speed or variable frequency are optional		m/min	----					----					----					0.6/2.6 （20kw）					----
			1/3.9 （20kw）					0.38/2.3 （16kw）					1-6.2 （38kw）					0.7-4.1 （38kw）					0.5-3.2
			----					0.67/2.7 （20kw）					----					----					----
Moving speed/Moving motor power		kw	0-20m/min 2x1.1kw					0-20m/min 2x1.1kw					0-20m/min 2x1.1kw					0-20m/min 2x1.5kw					0-20m/min 2x1.5kw
Maximum wheel pressure/Applicable track		KN/mm	～73KN / 40x50mm					～100KN / 40x60mm					～92KN / 40x60mm					～116KN / 40x60mm					～144KN / 50x70mm
Standard track gauge L		mm	2100		2400	2700	3000	1500	2400	2700	3400	4000	2100		2400	2700	3000	2500		3000	3500	4000	2500		3000	3500	4000
Allowed minimize track gauge Amin		mm	1600	1900	2200	2500	2800	1400	2100	2700	3200	3800	1600	1900	2200	2500	2800	1900	2400	2800	3300	3800	1900	2400	2800	3300	3800
Wheel tread A (single hook/twin hook)		mm	1600/2200					1600/2200					1600/2200					1600/2400					1600/2400
Horizontal center distance between two hooks S		mm	697					698					697					788					788
On-track size H (single hook/twin hook)		mm	971			1051		881(926)			981(1026)		971			1051		990/1090			1090		990/1090			1090/1190
Maximum hook size C		mm	850					980					850					1100					1100
Weight in standard track gauge	Single hook	kg	2550	2690	2990	3188	3486	2330	2480	2600	2800	2900	2560	2700	3000	3200	3500	3590	3835	4280	4525	5020	3600	3850	4300	4550	5050
	Twin hook		2940	3090	3420	3528	3976	2710	2875	3030	3260	3400	2950	3100	3430	3640	3990	4280	4545	5040	5335	5880	4290	4560	5060	5360	5910

Video

Service

Installation and Training

We will dispatch engineers for on-site installation and training according to your requirements. Customers are responsible for transportation and accommodation fees for our engineers. Our training contents include mechanical and electric features of the cranes.

After Sales Service

We provide a one-year manufacturer's warranty for our products from the date of installation and commissioning. During the warranty period, we will provide maintenance service and replacement parts at no cost and will also dispatch engineers for on-site maintenance at no cost. After the warranty period ends, we still offer paid maintenance services.
