Bridge Crane

Uganda Project
LDO 5ton double girder bridge crane

Span: 21m
Lifting height: 6m
Lifting speed: 8/0.8m/min (double speed)
Trolley traveling speed: 0-20m/min(with inverter)
Carriage traveling speed: 0-30m/min(with inverter)
Power supply:415V,3P,50hz
Control mode: control with wire and remote control
Yuetong wire rope electric hoist

Malaysia Project

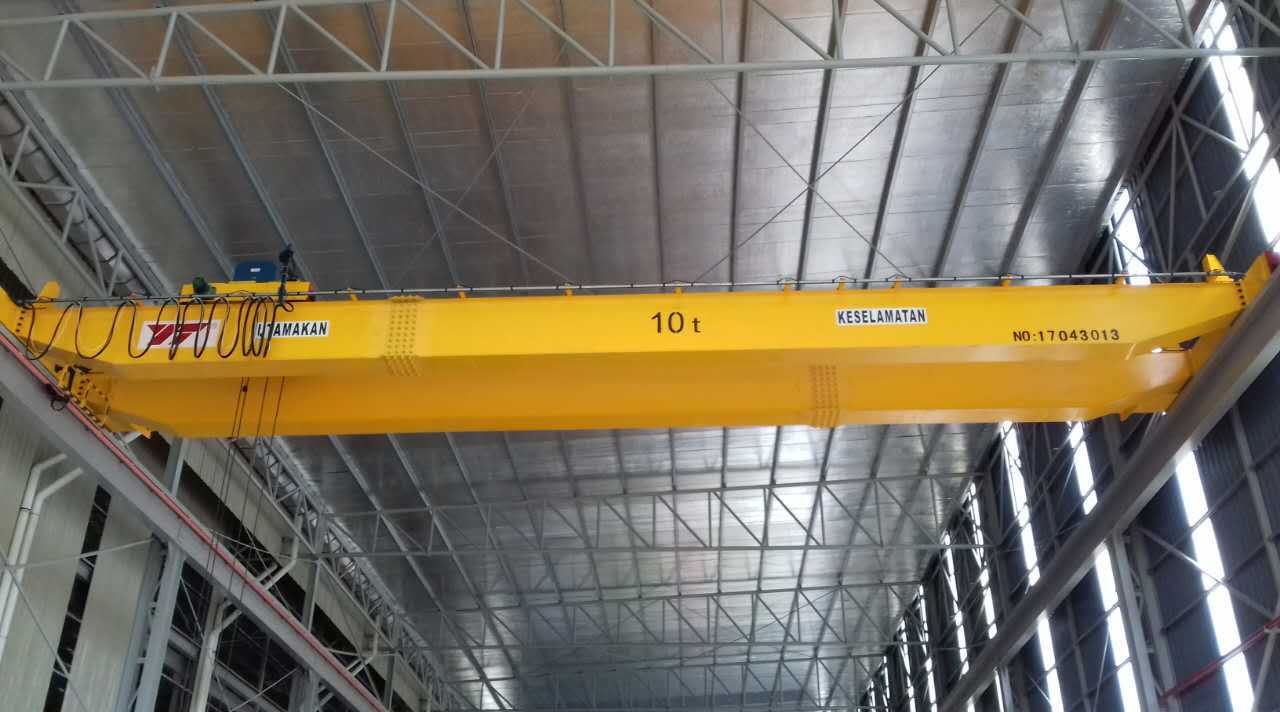

LH 10ton Double Girder Overhead Crane

Span:20m
Lifting height:9m
Lifting speed:7/0.7m/min(double speed)
Trolley traveling speed:0-20m/min(with inverter)
Carriage travelling speed:0-30m/min(with inverter)
Power supply:380V,3P,50hz.
Control mode: push button with wire + remote control
YUETONG wire rope hoist

Bangladesh Project

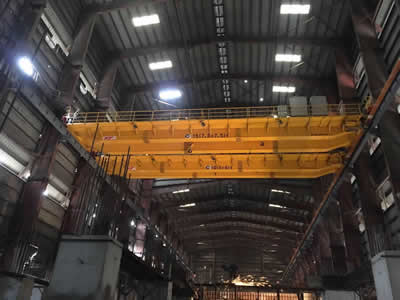

QE 5+5 ton double girder overhead crane with double trolley

Lifting capacity: 10ton
Span: 24m
Lifting height: 15m
5ton lifting speed: 10/1m/min (with inverter)
Trolley traveling speed: 20/4m/min (with inverter)
Carriage traveling speed: 40/8m/min (with inverter)
Power supply: 400V, 3P, 50hz
Control mode: control with wire and remote control
Boneng gearbox and motor
Used in a paper factory

First established in 1996, YT Crane Machinery Co., is a professional crane manufacturer with more than 20 years of experience in the production of different crane types, including overhead cranes, gantry cranes, jib cranes, and portal cranes. The maximum lifting capacity of our double girder overhead cranes is more than 200 tons.
